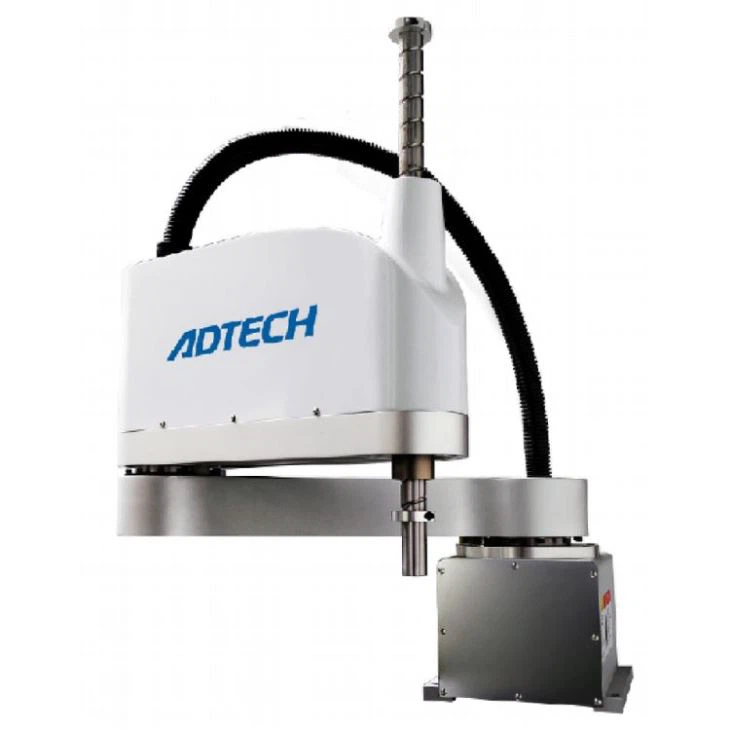

Khaws Thiab Muab Cov Hlau Rau Cov Ntsuas Thiab Los Ua Ke AR 81030
Khoom Taw qhia
Qauv | AR 81030 | ||
Hom | SCARA | ||
Tus naj npawb ntawm axes | 4 | ||
Caj npab ntev | 800 hli | ||
Axis Specification | X Axis | Caj Npab Ntev | 400 hli |
Hloov Kab Yeeb | ±145° | ||
Y Axis | Caj Npab Ntev | 400 hli | |
Hloov Kab Yeeb | ±150° | ||
Z Axis | Txoj kev | 300 hli | |
R Axis | Hloov Kab Yeeb | ±360° | |
Kev kub ceev | X Axis | 300°/s | |
Y Axis | 375°/s | ||
X, Y Axis Cov Khoom Sib Tham | 6.8m/s | ||
Z Axis | 1.4m/s | ||
R Axis | 1000°/s | ||
Lub Sij Hawm Tus Sij Hawm | 0.38s | ||
Rov Ua Dua | X, Y Axis | ± 0. 003 hli | |
Z Axis | ± 0. 02 hli | ||
R Axis | ±0.01° | ||
Rated / Max Load | 10 KG / 20 KG | ||
R Axis Cia Tawm Thauj Lub Sij Hawm ntawm Inertia (Rated / Max) | 0. 1 KG / ㎡ | ||
0. 5 KG / ㎡ | |||
Tus Neeg Siv Kab Xov Xwm | 0. 2 ² × 16 Kab, | ||
Cov Neeg Siv Yeeb Nkab | {6 × 2 Cag | ||
Kev Txwv Tiv Thaiv | Software siv Qhov Txwv | ||
Nyhav | 44. 8 KG | ||
Nta thiab Daim Ntawv Thov
* Ntshuam encoder
* Tus tuav HD
* Qhia pendent
* Tswj txee
• Cov txheej txheem lub teeb me me, kev teb nrawm dua, qhov kev paub tseeb kinematic, qhov ntsuas siab, khiav ceev nrawm, chaw txuag thiab qhov chaw ua haujlwm loj.
• Raws kev siv tshuab kev lag luam paub tab platform, ua haujlwm yooj yim thiab ua haujlwm siab.
Cov ntawv thov
Khoom noj khoom haus, tshuaj pleev ib ce, khoom siv rau kev siv niaj hnub:
Lub thawv los ua ke ntawm cov tshuaj pleev ib ce, cov zaub mov yooj yim ntim, khoom qab zib thiab chocolate ntim.
Vim Li Cas Xaiv Peb
• Kev cog lus ntawm qhov sib txawv, qhov kev teb ceev thiab qhov tseeb kinematic, nrog qhov zoo ntawm kev ua kom siab, qhov siab, qhov chaw teeb tsa me me thiab qhov chaw ua haujlwm loj, SCARA neeg hlau tau dav siv rau thaj chaw muaj, xws li xaiv& qhov chaw, hloov chaw, ntaus ntawv, khoov, pib tawm, pom kev sib txawv, tshuaj ntsuam logo, ntsia hlau, ntsaws tshuab, PCB chaw thau khoom, soldering, barcode scanning thiab lwm yam.
• Peb cov SCARA robots yog txhua tus ua raws li kev lag luam thov kev siv tshuab nrog kev ua haujlwm siab.
• Peb' rov qab yog ib qho ua ntej R& D thiab chaw tsim khoom ntawm SCARA Robot los xyuas kom muaj kev sib tw ntawm cov thev naus laus zis thiab kev ua tau zoo nrog lub koob npe zoo hauv khw.
Tsiv Chaw
Cov Khoom Tseem Ceeb
Ntim& Txaj Muag
Muaj kev xa tawm cov ntawv ntim khoom, lossis raws li tus neeg thov' s thov.
Ntau txoj kev thauj khoom pub rau koj qhov kev pabcuam, suav nrog DHL, UPS, TNT thiab FEDEX, Airfreight lossis Hiavtxwv.
