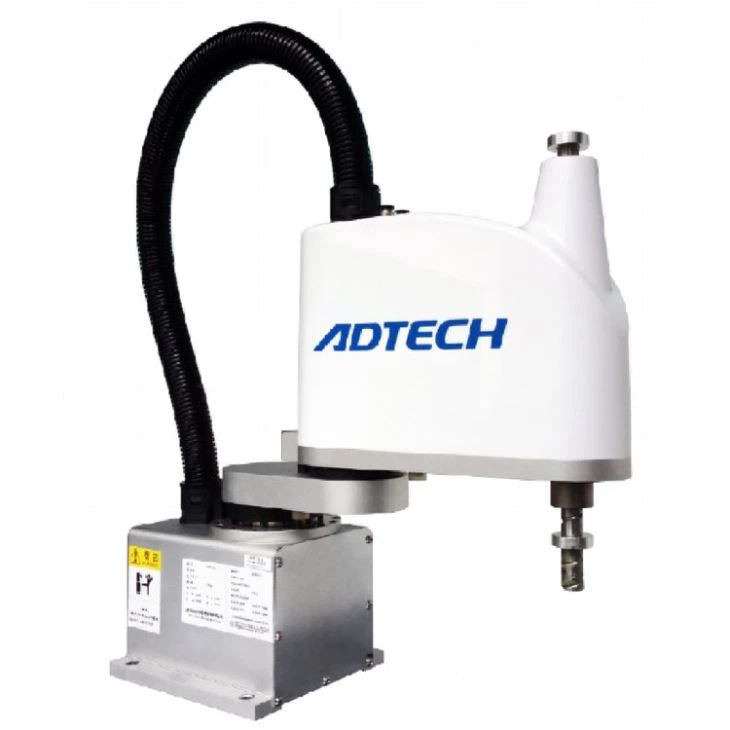

Mini Industrial Manipulator Scara Neeg Hlau

ADTECH SCARA Neeg Hlau Caj Npab Muaj Rau Kev Xaiv Thiab Qhov Chaw daws
Lwv Nrog EPSON
4 axis Neeg Hlau 300 hli Npab Ntev AR 3215

Xa kev nug

ADTECH SCARA Neeg Hlau Caj Npab Muaj Rau Kev Xaiv Thiab Qhov Chaw daws

Lwv Nrog EPSON

4 axis Neeg Hlau 300 hli Npab Ntev AR 3215

Specification

Qauv	AR 3215
Hom			SCARA
Tus naj npawb ntawm axes			4
Caj npab ntev			300 hli
Axis Specification	X Axis	Caj Npab Ntev	100 hli
		Hloov Kab Yeeb	±127°
	Y Axis	Caj Npab Ntev	200 hli
		Hloov Kab Yeeb	±142°
	Z Axis	Txoj kev	150 hli
	R Axis	Hloov Kab Yeeb	±360°
Kev kub ceev	X Axis		600°/s
	Y Axis		600°/s
	X, Y Axis Cov Khoom Sib Tham		5.2m/s
	Z Axis		1.3m/s
	R Axis		1667°/s
Lub Sij Hawm Tus Sij Hawm			0.35s
Rov Ua Dua Txoj Haujlwm Qhov Raug Yog		X, Y Axis	± 0. 01 hli
		Z Axis	± 0. 01 hli
		R Axis	±0.005°
Rated / Max Load			2 KG / 5 KG
R Axis Cia Tawm Thauj Lub Sij Hawm ntawm Inertia (Rated / Max)			0. 005 KG / ㎡
			0. 035 KG / ㎡
Tus Neeg Siv Kab Xov Xwm			0. 2 ² × 16 Kab, 8 Tawm Tawm, 6 Tawm tswv yim
Cov Neeg Siv Yeeb Nkab			{6 × 2 Cag
Kev Txwv Tiv Thaiv			1. Software Txwv 2. Cov Hluav Taws Xob Txwv (X, Y, Z Axis)
Nyhav			13. 1 KG
