Nta
Specifications
Daim ntawv thov
Download tau

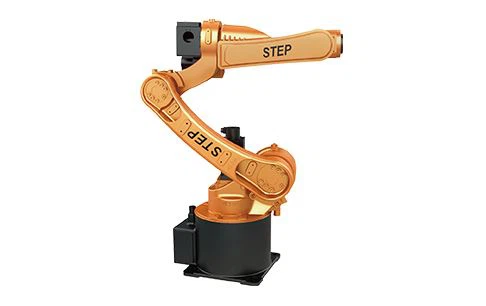

SIB 1400
| Qauv |
SIB 1400 |
|
|
Dab teg Rated Payload |
6kg ua |
|
|
Max Ua Haujlwm Radius |
1 405mm |
|
|
DOF |
6 |
|
|
Max Ceev |
J1 |
180 degree / s |
|
J2 |
180 degree / s |
|
|
J3 |
200 degree / s |
|
|
J4 |
450 degree / s |
|
|
J5 |
320 degree / s |
|
|
J6 |
450 degree / s |
|
|
Qhov chaw ua haujlwm Max |
J1 |
± 165 degree |
|
J2 |
﹢155 degree ~ -90 degree |
|
|
J3 |
﹢70 degree ~ -200 degree |
|
|
J4 |
± 170 degree |
|
|
J5 |
± 120 degree |
|
|
J6 |
± 360 degree |
|
|
Lub dab teg Allowable Torque |
J4 |
11.8 Nm |
|
J5 |
9,8nm ua |
|
|
J6 |
5,9nm ua |
|
|
Lub dab teg Allowable Inertia |
J4 |
0.6 kg㎡ |
|
J5 |
0.25 kg㎡ |
|
|
J6 |
0.06kg㎡ |
|
|
Qhov hnyav |
143kg ua |
|
|
Txoj hauj lwm Repeat raug |
± 0.05 hli |
|
|
Ambient Kub |
0 ~ 40 degree |
|
