Khoom Taw Qhia

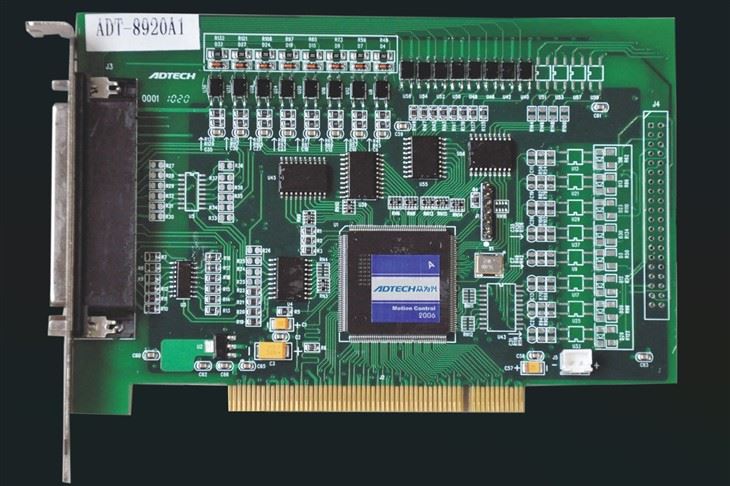

ADT-8920 2 axis advanced point control card yog daim npav mem tes ua haujlwm siab uas txhawb nqa 4 mus rau 8 servo lossis stepper lub cev muaj zog. Nws siv cov software ua haujlwm dav dav thiab siv 5D RTCP algorithm, nws tuaj yeem khaws cov cuab yeej nruab nrab thiab qhov chaw sib cuag tiag tiag ntawm lub cuab yeej thiab cov khoom ua haujlwm tsis hloov pauv. Tsis tas li ntawd, daim npav tswj nws tus kheej muaj ntau lub hom phiaj dav dav I / O cov chaw nres nkoj, uas tuaj yeem ua tau raws li I / O cov cai ntawm feem ntau cov ntawv thov. Nyob rau tib lub sijhawm, nws txhawb CAN tsheb npav I / O nthuav dav, thiab nws tseem tuaj yeem ua tau raws li lub sijhawm ntawm pawg I / O cov ntsiab lus los ntawm cov tsheb npav sab nraud, uas yooj yim rau I / O nthuav dav thiab txhim kho kev tswj hwm.
Khoom Specification
|
Hom |
2 Axis High Performance Motion Control Card |
|
|
Tsim nyog lub sijhawm |
Advanced point motion |
|
|
Model npe |
ADT-8920 |
|
|
Qhov tshwm sim |
Duab |
|
|
Hardware configuration thiab kev ua tau zoo |
Tus naj npawb ntawm axis |
2 axis |
|
Qhov siab tshaj pulse zaus |
2M |
|
|
Number ntawm encoder ncej |
2 axis |
|
|
Encoder tawm tswv yim zaus |
4M |
|
|
Qhov siab tshaj plaws input zaus ntawm tes log |
4M |
|
|
ALM, RDY, INP, SVON |
√ |
|
|
General tswv yim digital |
24 |
|
|
Digital tso zis |
12 |
|
|
Teeb liab lim |
√ |
|
|
Hardware nres thaum muaj xwm ceev |
√ |
|
|
Point tswj |
Homing zog |
√ |
|
JOG motion |
√ |
|
|
Point txav |
√ |
|
|
T-hom acceleration thiab deceleration |
√ |
|
|
Master- qhev nram qab no |
√ |
|
|
Kev kub ceev IO tswj |
High ceev txoj hauj lwm sib piv cov zis |
2 |
|
Kev kub ceev latch |
4 |
|
|
PWM control |
2 |
|
Feature
1. Ib daim npav tswj kev txav tuaj yeem txhawb nqa 1 mus rau 2 servo lossis stepper lub cev muaj zog
2. PWM, Analog control
3. Feem ntau software muaj nuj nqi interface
4. Ceev ceev rau pem hauv ntej
Cov lus piav qhia txog kev ua tau zoo
1. 2-axis
2. Script programming thiab ceev multiplying tus nqi
