Daim ntawv thov ntawm Tufting plaub hau tshuab tswj system

I. Taw qhia txog kev drilling / Tufting plaub hau Tshuab kev lag luam

Txhuam yog ib qho khoom siv tseem ceeb hauv lub neej niaj hnub, thiab tseem yog ib qho khoom siv hauv kev tsim khoom. Txhuam kev lag luam muaj kev lag luam dav dav heev, yog li txhuam ua cov tuam txhab ua haujlwm hnyav los txhim kho cov peev txheej ntau lawm thiab kev ua haujlwm ntau lawm, tab sis kuj muab cov kev xav tau siab ntawm kev siv tshuab thiab kev ua haujlwm ntawm Tufting plaub hau tshuab. Lub tshuab drilling thiab Tufting plaub hau tshuab ua lub tshuab ua haujlwm yooj yim tshaj plaws ntawm kev lag luam txhuam, nws txoj kev txhim kho thiab kev txhawb nqa tau txais kev saib xyuas zoo.

Drilling / Tufting plaub hau Tshuab tuaj yeem siv los ua ntau yam ntawm lub neej txhuam hniav, xws li txhuam hniav, broom, khau txhuam, txhuam ntoo, hlau txhuam, tooj liab hlau txhuam, txhuam hniav, thiab lwm yam. Thiab nyob rau hauv kev lag luam txhuam hniav, xws li txhuam hniav roller, disc txhuam thiab lwm yam tsis tuaj yeem raug cais tawm ntawm lub tshuab drilling, Tufting plaub hau tshuab.

Classification ntawm Drilling / Tufting plaub hau tshuab:

Drilling / Tufting plaub hau Tshuab tuaj yeem muab faib ua ntau hom raws li cov qauv sib txawv.

Raws li tus naj npawb ntawm axes, nws tuaj yeem muab faib ua ob axes, peb axes thiab plaub axes saum toj no; Raws li kev ua haujlwm kom paub qhov txawv, tuaj yeem muab faib ua Tufting plaub hau Tshuab, drilling tshuab thiab drilling tshuab. Tam sim no, ob thiab peb axis tshuab feem ntau yog siv, vim hais tias feem ntau cov khoom tsuas yog yuav tsum tau siv ob thiab peb axes, ntau tshaj plaub axis tshuab yog siv los tsim ib co tshwj xeeb-zoo li tus txhuam. Tam sim no, high-end tsib-axis drilling / Tufting plaub hau tshuab cov cuab yeej muaj cov yam ntxwv ntawm kev kub ceev, multi-ua hauj lwm drilling thiab cog nyob rau tib lub sij hawm, ntau yam tshwj xeeb-zoo li tus txhuam ua, nws tus kheej-programming, kev ua tau zoo, tab sis lub tus nqi kuj tseem kim piv rau lub tshuab zoo tib yam.

1. Drilling / Tufting plaub hau Tshuab tswj qhov yuav tsum tau ua:

Qhov kev xav tau ceev tam sim no ntawm cov plaub hau cog / laum tshuab feem ntau yog 500-1000 qhov / min; Nco ntsoov 100-2000 ua cov ntaub ntawv duab, tuaj yeem nkag mus rau 1000-100, 000 qhov; Txhawb U disk muaj nuj nqi, tuaj yeem yooj yim thiab sai sai paub cov ntawv luam ntawm cov ntaub ntawv ntawm cov tshuab, txhawb nqa lub thawv ua haujlwm, nrog kev tiv thaiv tus password.

Lub kaw lus ntawm Tufting plaub hau tshuab feem ntau siv ob hom kev ua haujlwm cov ntaub ntawv: kev qhia thiab kho. Nrog intuitive ua raws li txoj cai tso saib system, cov neeg siv tau sai sai paub cov txheej txheem ua thiab kho txhua lub sij hawm; Ntxiv, hloov kho, ntxig, rho tawm thiab lwm yam kev ua cov ntaub ntawv kho kom raug, yooj yim thiab ceev los daws cov qhov offset, ntxeem tau, qhov to thiab lwm yam teeb meem.

Rau qee cov qauv tsis tu ncua, xws li cov kab zoo nkauj ntawm lub qhov nrog qhov sib npaug sib npaug, lossis qhov twg ib feem yog tib yam li lwm qhov tab sis nyob rau hauv ib txoj haujlwm sib txawv, cov yam ntxwv tshwj xeeb tuaj yeem siv los tsim cov ntaub ntawv xav tau sai. Cov haujlwm no suav nrog qhov sib cais, luam tawm, txhais lus thiab tsim qauv tsim.

Los ntawm kev ua haujlwm ntawm kev faib qhov, cov qauv tsis tu ncua ntawm cov plaub hau drilling tuaj yeem tsim tau sai. Lub replication muaj nuj nqi txhawb lub replication ntawm tag nrho cov machining qhov chaw thiab ib feem ntawm qhov chaw ua hauj lwm qhov chaw, tsis re-input ua ntaub ntawv, nrog translation muaj nuj nqi, muaj peev xwm txhais tau tag nrho cov khoom plaub hau drilling rau kev ua, tsis tas yuav manually hloov cov ntaub ntawv. , yooj yim thiab ceev ua haujlwm.

2. Tus qauv muaj nuj nqi: Xaiv tus qauv xav tau hauv kev qhia

3, kev ua haujlwm hom: nyob rau hauv cov nqe lus ntawm kev ua hauj lwm hom, nws muaj tsis siv neeg ua, semi-automatic ua, tag nrho lub qhov, qhov filling ua, ib kauj ruam ua, simulation ua, thiab lwm yam .; Hom kev ua haujlwm saum toj no kuj tuaj yeem teeb tsa raws li xav tau.

Nws muaj kev nplua nuj tshuab machining parameter Chaw rau txhua lub ncej machining ceev, kev qhia ceev, rov qab mus rau qhov pib ceev thiab dhia nrug. Tsis siv neeg tshawb nrhiav thiab lub tswb muaj nuj nqi hauv cov txheej txheem ntawm kev ua, cov neeg siv tuaj yeem nrhiav tau sai thiab daws teeb meem, tiv thaiv txhua yam kev raug mob xws li: lub tswb xov tooj hnyav, txhuam phaj tswb, txhuas hlau tswb, tsis muaj cov khoom siv tswb; Nrog rau kev kuaj mob muaj nuj nqi, cov tswv yim thiab cov teeb liab tawm tuaj yeem kuaj pom los pab cov neeg siv daws teeb meem yooj yim.

II, kev taw qhia cov khoom siv

Lub tshuab tshuab ntawm Tufting plaub hau tshuab yog tsuas yog muab faib ua peb ntu: lub taub hau, lub cev thiab kev sib tw.

1, lub taub hau: yog lub ntsiab mechanical ib feem ntawm Tufting plaub hau tshuab, lub ntsiab kev txiav txim ntawm cov plaub hau cog: noj cov plaub hau, txiav, hlau tsim, hlau tying txhuam hlau, txhuam hlau implantation nyob rau hauv lub qhov.

Lub taub hau feem ntau los ntawm kev sib txuas pas nrig, CAM qauv kom ua tiav cov haujlwm saum toj no. Raws li txoj kev cog plaub hau, lub taub hau tau muab faib ua ob hom: tooj liab (hlau) hom taub hau thiab nees ntsia thawv hom taub hau. Lub taub hau tooj liab feem ntau yog siv los nias cov txhuam hlau rau hauv lub qhov nrog qhov ntev ntawm tooj liab, thiab cov tooj liab tau muab tso rau hauv ob phab ntsa ntawm lub qhov kom ua tau raws li qhov yuav tsum tau muaj ntawm qhov nro. Lub tshuab ntsia hlau nees yuav tsim cov hlau hlau rau hauv ib qho "U" zoo li, khi cov txhuam hlau, cog lub qhov, thiab ua tiav cov txiaj ntsig ntawm kev xauv los ntawm kev deformation thiab nthuav dav ntawm cov hlau hlau.

Raws li qhov ntev ntawm cov plaub hau cog, lub taub hau tuaj yeem muab faib ua plaub qhov ntau thiab tsawg: 26H, 36H, 75H, 150H; Raws li cov xim ntawm cov plaub hau cog, nws tuaj yeem muab faib ua monochrome thiab ob-xim taub hau. Raws li cov plaub hau cog ceev tuaj yeem muab faib ua: lub taub hau zoo tib yam thiab lub taub hau siab ceev.

2. fuselage: Nws yog cov qauv tseem ceeb ntawm Tufting plaub hau tshuab, uas yog siv rau nruab lub taub hau, lub cev muaj zog, ntsia hlau, rooj thiab fixture.

3, fixture: yog siv los nruab thiab ua cov khoom lag luam, raws li cov txheej txheem khoom sib txawv, tsim cov khoom sib txawv.

4. Kev tswj hwm qhov system: Tam sim no, CNC Tufting plaub hau Tshuab ntawm kev ua lag luam yog ib txwm tsav los ntawm servo lub cev muaj zog lossis stepping lub cev muaj zog. Tag nrho cov qauv ntawm cov khoom siv tiag tiag yog pom hauv daim duab saum toj no, uas tau muab faib ua ob txoj kab rov tav, uas yog, X axis thiab Y axis. Ob lub shafts yog tsav los ntawm kev sib txuas ncaj qha ntawm cov hlau lead.

X axis: siv los tsav sab laug thiab txoj cai txhais lus ntawm lub rooj zaum ua haujlwm, thiaj li tsav cov khoom siv tiag tiag uas yuav tsum tau ua tiav kom txav mus deb;

Y-axis: siv los tsav lub rooj rau pem hauv ntej thiab rov qab txhais lus, thiaj li tsav cov khoom siv tiag tiag uas yuav tsum tau ua tiav kom txav mus deb;

Z axis: siv los tsav lub rooj kom txav mus los;

Axis A yog siv rau kev sib hloov;

Cov khoom siv los ntawm X axis, Y axis txav qhov chaw ruaj khov, zaus converter tsav spindle lub cev muaj zog txav, yog li tsav tsheb rub, thiab tom qab ntawd tsav CAM mechanism ua haujlwm, kom cov plaub hau cog thiab cov plaub hau noj mechanism sib cuam tshuam. (Cov plaub hau cog lub taub hau txav vertically, thiab cov plaub hau cog ceev yog pom tau los ntawm kev kho qhov ceev ntawm spindle motor. Thaum lub zaus ntawm spindle zaus converter nce, qhov ceev ntawm spindle lub cev muaj zog nce, qhov ceev ntawm lub vertically txav lub taub hau nce. , thiab qhov sib thooj servo ceev kuj nce.)

Iii. Zaub ntawm Tufting plaub hau Tshuab tswj system:

Controller ntawm 2-4 axis Tufting plaub hau tshuab (push-khawm system)

ZM200C ob-axis ZM300C peb-axis ZM400C plaub-axis

●2-4 axis taw tes txav, txhawb interpolation

● Qhov saib ua ntej thiab lub sijhawm tiag tiag dynamic zaub ntawm machining txoj kev.

● Nrog ko taw, tsis siv neeg clamping, fixture detection, hluav taws xob qhov muag xim hloov, xim hloov ua ntej deceleration, qhov kawg ntawm ob ntu ceev, chaw nres tsheb hloov los tiv thaiv kev sib tsoo, patting ntaub plaub, ntau lub chaw nres tsheb xaiv, hluav taws xob qhov muag xaim pub, xoom rov qab shaft sequence setting, phau ntawv xa axis yb axis linkage thiab lwm yam wool tshuab tshuab

● Ntau hom qauv tsim cov qauv tsis sib xws, txo lub sijhawm los qhia qhov chaw ntawm lub qhov

● Thaum kho cov ntawv luam qhov kev txhais lus ntim xim ntim tshem tawm cov ntaub ntawv tshem tawm thiab lwm yam haujlwm yooj yim ntawm cov ntaub ntawv kho

● Tus naj npawb ntawm axes tuaj yeem tswj tau: 2-4 axes

● Kev kub ceev ntau tshaj 8 qhov ib ob

● Taug qab saib ua ntej simulation

● Tufting plaub hau Tshuab muaj kev pabcuam ua tiav

● Muaj ntau tshaj 20 hom qauv qauv

● 13 cov zis thiab 22 cov khoom siv

● 9-needle operating box ntxiv rau 15- koob qhia lub thawv

npe project	Tshuab txhuam hniav
Device configuration (ib qho khoom siv)
Lub npe	Specification / qauv		Ntau	Piav
Tufting plaub hau tshuab system	ZM400C		1
Servo qhov system	ODSAP6A401GB ntxiv rau OMS1401N2LN		3
	ODSAP6A201GB ntxiv rau OMS1201N2LN		1
Zaus converter ntxiv rau AC lub cev muaj zog	400W zaus converter ntxiv rau 400W AC lub cev muaj zog		1 Teeb
thov kev pab
precision	hauv qab 0.05mm
muaj txiaj ntsig zoo
1, 24 teev ua haujlwm tsis cuam tshuam, txhim kho kev ua haujlwm ntau lawm 2, vim hais tias cov cuab yeej muaj lub thawv khoom, ib tus neeg ua haujlwm tuaj yeem ua haujlwm 3 ~ 4 khoom.

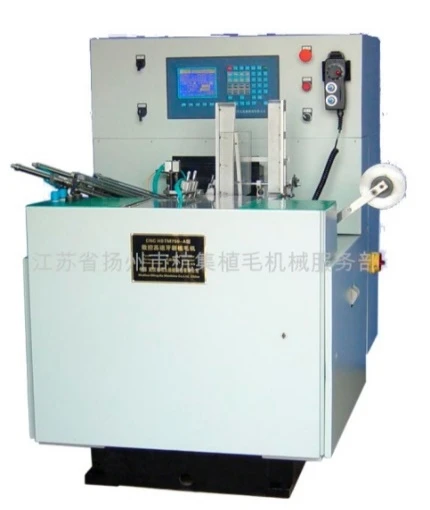

Cov khoom siv duab		cov khoom tiav
