STAGE			1
Iav piv	i		3		4	5		6	7		8			10
Rated tso zis torque (1000 zaug tso cai rau hauv lub thawv iav)	*T 2N*	Nm	130		140	160		150	140		120			100
		*Ib. lb*	1151		1239	1416		1328	1239		1062			885
	*T 2 TSIS*	Nm	3xNOM.Output/ 3 zaug rated tso zis torque
		*Ib. lb*
Rated input RPM (T2N, 20℃ ib puag ncig kub) b	*N 1n*	*rpm ua*	4000		4000	4000		4000	4000		4000			4000
Max. Input RPM	*N 1 max*	*rpm ua*	8000		8000	8000		8000	8000		8000			8000
Max.backlash	*J t*	*arcmin*	PBMD 90≤5 ARCMIN PBMD * 90≤3 ARCMIN Bespoke ≤1 ARCMIN
Tsis muaj load torque (nt=3000rmp, iav kem 20℃	*T 012*	Nm	1.8	1.4			1.1	1		0.8		0.7	0.6
		*Ib. lb*	15.9	12.4			9.7	8.9		7.1		6.2	5.3
Torsional nruj	*C t21*	*Nm/arcmin*	10
		*Ib.lb/arcmin*	89
Max.radical quab yuam	*F 2 AMAX*	N	3500
		*ibf ib*	787.5
Max.axial quab yuam	*F 3RMAX*	N	1400
		*ibf ib*	315
Max.sab zog	*M 2 KMAX*	Nm	236
		*Ib. lb*	2089
Ua hauj lwm lub neej	*L h*	hr	≥20000
Siab loaded efficiency	η	%	97
Ib puag ncig kub	℃		-15 rau 40
	F		5 rau 104
Tso cai kub siab tshaj ntawm plhaub	℃		+90
	F		194
Lubrication			Lub neej lubrication
Kev sib hloov kev taw qhia			Input/output nrog tib cov kev taw qhia
Chav kawm tiv thaiv			IP65
Kev taw qhia kev teeb tsa			Txhua / txhua qhov kev taw qhia
Ua haujlwm nrov (i=10 thiab n1=3000rpm tsis muaj load)	*Lpa dB (A)*		≤58
Lub sijhawm ntawm inertia	J1	Kg cm²	0.61		0.48	0.47		0.45	0.45		0.44			0.44
		10^-3ib lb.s²	0.53		0.42	0.41		0.39	0.39		0.38			0.38

STAGE			1
Iav piv	i		3		4	5		6	7		8			10
Rated tso zis torque (1000 zaug tso cai rau hauv lub thawv iav)	*T 2N*	Nm	130		140	160		150	140		120			100
		*Ib. lb*	1151		1239	1416		1328	1239		1062			885
	*T 2 TSIS*	Nm	3xNOM.Output/ 3 zaug rated tso zis torque
		*Ib. lb*
Rated input RPM (T2N, 20℃ ib puag ncig kub) b	*N 1n*	*rpm ua*	4000		4000	4000		4000	4000		4000			4000
Max. Input RPM	*N 1 max*	*rpm ua*	8000		8000	8000		8000	8000		8000			8000
Max.backlash	*J t*	*arcmin*	PBMD 90≤5 ARCMIN PBMD * 90≤3 ARCMIN Bespoke ≤1 ARCMIN
Tsis muaj load torque (nt=3000rmp, iav kem 20℃	*T 012*	Nm	1.8	1.4			1.1	1		0.8		0.7	0.6
		*Ib. lb*	15.9	12.4			9.7	8.9		7.1		6.2	5.3
Torsional nruj	*C t21*	*Nm/arcmin*	10
		*Ib.lb/arcmin*	89
Max.radical quab yuam	*F 2 AMAX*	N	3500
		*ibf ib*	787.5
Max.axial quab yuam	*F 3RMAX*	N	1400
		*ibf ib*	315
Max.sab zog	*M 2 KMAX*	Nm	236
		*Ib. lb*	2089
Ua hauj lwm lub neej	*L h*	hr	≥20000
Siab loaded efficiency	η	%	97
Ib puag ncig kub	℃		-15 rau 40
	F		5 rau 104
Tso cai kub siab tshaj ntawm plhaub	℃		+90
	F		194
Lubrication			Lub neej lubrication
Kev sib hloov kev taw qhia			Input/output nrog tib cov kev taw qhia
Chav kawm tiv thaiv			IP65
Kev taw qhia kev teeb tsa			Txhua / txhua qhov kev taw qhia
Ua haujlwm nrov (i=10 thiab n1=3000rpm tsis muaj load)	*Lpa dB (A)*		≤58
Lub sijhawm ntawm inertia	J1	Kg cm²	0.61		0.48	0.47		0.45	0.45		0.44			0.44
		10^-3ib lb.s²	0.53		0.42	0.41		0.39	0.39		0.38			0.38

STAGE			1
Iav piv	i		3		4	5		6	7		8			10
Rated tso zis torque (1000 zaug tso cai rau hauv lub thawv iav)	*T 2N*	Nm	130		140	160		150	140		120			100
		*Ib. lb*	1151		1239	1416		1328	1239		1062			885
	*T 2 TSIS*	Nm	3xNOM.Output/ 3 zaug rated tso zis torque
		*Ib. lb*
Rated input RPM (T2N, 20℃ ib puag ncig kub) b	*N 1n*	*rpm ua*	4000		4000	4000		4000	4000		4000			4000
Max. Input RPM	*N 1 max*	*rpm ua*	8000		8000	8000		8000	8000		8000			8000
Max.backlash	*J t*	*arcmin*	PBMD 90≤5 ARCMIN PBMD * 90≤3 ARCMIN Bespoke ≤1 ARCMIN
Tsis muaj load torque (nt=3000rmp, iav kem 20℃	*T 012*	Nm	1.8	1.4			1.1	1		0.8		0.7	0.6
		*Ib. lb*	15.9	12.4			9.7	8.9		7.1		6.2	5.3
Torsional nruj	*C t21*	*Nm/arcmin*	10
		*Ib.lb/arcmin*	89
Max.radical quab yuam	*F 2 AMAX*	N	3500
		*ibf ib*	787.5
Max.axial quab yuam	*F 3RMAX*	N	1400
		*ibf ib*	315
Max.sab zog	*M 2 KMAX*	Nm	236
		*Ib. lb*	2089
Ua hauj lwm lub neej	*L h*	hr	≥20000
Siab loaded efficiency	η	%	97
Ib puag ncig kub	℃		-15 rau 40
	F		5 rau 104
Tso cai kub siab tshaj ntawm plhaub	℃		+90
	F		194
Lubrication			Lub neej lubrication
Kev sib hloov kev taw qhia			Input/output nrog tib cov kev taw qhia
Chav kawm tiv thaiv			IP65
Kev taw qhia kev teeb tsa			Txhua / txhua qhov kev taw qhia
Ua haujlwm nrov (i=10 thiab n1=3000rpm tsis muaj load)	*Lpa dB (A)*		≤58
Lub sijhawm ntawm inertia	J1	Kg cm²	0.61		0.48	0.47		0.45	0.45		0.44			0.44
		10^-3ib lb.s²	0.53		0.42	0.41		0.39	0.39		0.38			0.38

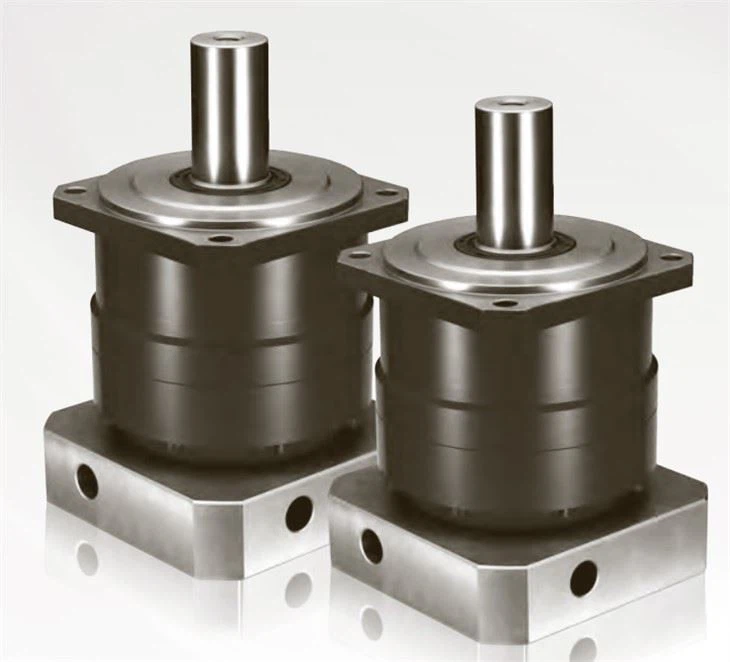

Product Description:
Planetary gearbox yog ib yam ntawm cov reducer nrog dav versatility.
Cov iav sab hauv tau txais cov pa roj carbon tsawg steel carburizing quenching thiab sib tsoo lossis nitriding txheej txheem.
Planetary gearbox muaj cov yam ntxwv ntawm cov qauv me me, cov zis loj torque, kev kub ceev piv, kev ua haujlwm siab, kev nyab xeeb thiab txhim khu kev qha, thiab lwm yam.
Cov iav sab hauv ntawm lub planetary gearbox tuaj yeem muab faib ua spur iav thiab helical iav.
Cov neeg siv khoom tuaj yeem xaiv qhov raug precision reducer raws li qhov xav tau ntawm daim ntawv thov.

Lub ntsiab nta:

1. High rigidity: Carburizing, carbon nitrogen co-carburizing, ci ntsa iab quenching tshav kub kev kho mob, qhov zoo ntawm high productivity, zoo quenching.
2.High precision: Txais cov cuab yeej siv siab heev, nruj tswj hwm hauv kev ua tau zoo thiab thev naus laus zis.
3.High torque:
(1) Pem hauv ntej plhaub thiab hniav nplhaib txais ib qho qauv tsim
(2) Integrated tsim ntawm planetary ncej thiab tso zis ncej
(3) Bearing ntev span tsim, xyuas kom meej cov zis load peev xwm
(4) Tag nrho rab koob dov, nce kev sib cuag nto
(5) Modular tsim ntawm lub cev muaj zog txuas phaj
4. Tsawg suab nrov:
Lub helical hniav nto yog hloov kho rau cov hniav zoo thiab ua rau kom txo tau qhov cuam tshuam thiab lub suab nrov ntawm iav ntawm cov khoom siv thiab cov khoom tawm,
ces nce iav kev pab lub neej zoo heev.

Peb qhov ADVANTAGE

Tsim& tshuab
Peb tsim thiab siv tshuab

1. Lub iav kis tau tus mob interface adopots puv koob rau cov menyuam bearings tsis muaj tawb,
nce qhov chaw sib cuag los txhim kho lub rigidity ntawm cov qauv thiab cov zis torque.
2. Lub ntiaj teb cov cab kuj thiab cov zis ncej txais ib qho kev sib xyaw qauv tsim rau
txhim kho lub compactness ntawm tus qauv thaum ua kom lub siab tshaj plaws torsional rigidity.
3. Siv hluavtaws lubricating roj thiab txais yuav cov sealing tsim ntawm qib IP65 tiv thaiv,
cov roj lubricating tsis xau thiab tsis muaj kev saib xyuas.
4. Los ntawm kev txiav cov hniav profile thiab cov hlau lead ntawm cov ntsia hlau hniav nto kom txo tau qhov cuam tshuam thiab suab nrov ntawm cov iav hauv thiab tawm,
ua rau cov txheej txheem iav meshing ruaj khov thiab ua kom lub neej kev pab cuam ntawm iav system.
5. Lub reducer txais helical iav tsim, thiab nws cov hniav profile meshing piv yog ntau tshaj ob zaug ntawm cov spur iav zoo tib yam.
Nws muaj cov yam ntxwv ntawm kev khiav, tsis tshua muaj suab nrov, siab tso zis torque thiab qis backlash.

Kev pab cuam:

Raws li qhov cuam tshuam tsis zoo los ntawm tus neeg siv khoom, SIGRINER engineering software yog siv los tsim cov lus tsa suab load nkhaus daim duab ntawm cov cuab yeej siv tshuab kom tau txais qhov sib thooj tsis sib xws thiab muab cov lus tsa suab load nkhaus. Intuitively tso saib cov tsis tseem ceeb thiab load indexes nyob rau hauv lub kis tau tus mob system los pab cov neeg muas zaub ua raws li cov qauv tsim nyog.

SIGRINER muab lub cev muaj zog database los ntawm 500 servo motor manufacturers thoob ntiaj teb.

Kev cob qhia neeg siv khoom:
Peb zoo siab los muab koj nrog peb cov kev siv suav thiab kev tsim kev sib kis. Peb tuaj yeem muab kev cob qhia cuam tshuam raws li koj xav tau. Thov hu rau peb tus engineer., lossis hu rau: +8615679703928(whatsapp/wechat)

Daim ntawv thov:

PBM (tus qauv)
Kev siv lub voj voog (ED≤60%)
High dynamic kev siv
High positioning raug
Rov qab ua haujlwm
