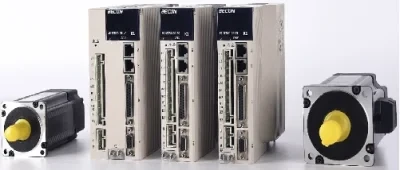

Yam khoom 110M4D-B15230D7 ntxiv rau K1BS15ABAC ACH lub cev muaj zog yog tsim los muab kev ua haujlwm siab hauv cov ntawv thov uas xav tau lub sijhawm loj ntawm inertia. Nws yog ib qho zoo ntxiv rau ADTECH tsab ntawv tsa suab tswj cov khoom lag luam, muab qhov loj me thiab qhov chaw qhov tseeb yam tsis muaj kev cuam tshuam rau kev ua haujlwm.
Lub cev muaj zog khiav ntawm qhov hluav taws xob ntawm 208-230V / 240V thiab 380V, nrog rau zaus ntawm 50-60Hz. Nws yog ib yam khoom tshiab los ntawm ADTECH thiab nyob rau hauv zoo meej.
Yuav kom yuav cov khoom no, cov neeg siv khoom yuav tsum tau them 100 feem pua TT ua ntej. Nws yog ib hom kev txhim khu kev qha thiab ruaj khov, tsim los ntawm ADTECHZSMC.
Zuag qhia tag nrho, Cov Khoom 110M4D-B15230D7 ntxiv rau K1BS15ABAC ACH lub cev muaj zog yog cov khoom lag luam zoo uas yuav haum rau cov kev xav tau ntawm ntau daim ntawv thov kev tswj xyuas. Nws cov yam ntxwv zoo heev ua rau nws yog qhov kev xaiv zoo tshaj plaws rau txhua tus uas tab tom nrhiav rau lub cev muaj zog.
| Servo Tsav Model | Flange (mm) | Lub zog (KW) | Rated Torque (Nm) | RPM | Qhov voltage (V) | Rated tam sim no (A) | Servo Dirver | Kev piav qhia | Khoom siv |
| M= 10000 kab nce encoder | |||||||||
| 110M4D-B12230D7 | 110 | 1.20 | 4.00 | 3000 | 380 | 3.0 | K1BS15 AB | 380V, 3 theem, serial encoder, 1.8KW, 15A | 3M |
| 110M4D-B15230D7 | 110 | 1.50 | 5.00 | 3000 | 380 | 4.5 | K1BS15 AB | 380V, 3 theem, serial encoder, 1.8KW, 15A | 3M |
| 110M4D-B18230D7 | 110 | 1.80 | 6.00 | 3000 | 380 | 4.5 | K1BS15 AB | 380V, 3 theem, serial encoder, 1.8KW, 15A | 3M |
| 130M4D-B10225D7 | 130 | 1.00 | 4.00 | 2500 | 380 | 2.6 | K1BS15 AB | 380V, 3 theem, serial encoder, 1.8KW, 15A | 3M |
| 130M4D-B13225D7 | 130 | 1.30 | 5.00 | 2500 | 380 | 5.0 | K1BS15 AB | 380V, 3 theem, serial encoder, 1.8KW, 15A | 3M |
| 130M4D-B15225D7 | 130 | 1.50 | 6.00 | 2500 | 380 | 3.7 | K1BS15 AB | 380V, 3 theem, serial encoder, 1.8KW, 15A | 3M |
| 130M4D-B20225D7 | 130 | 2.00 | 7.70 | 2500 | 380 | 4.7 | K1BS25 AB | 380V, 3 theem serial encoder, 3.0KW, 25A | 3M |
| 130M4D-B15215D7 | 130 | 1.50 | 10.00 | 1500 | 380 | 3.5 | K1BS15 AB | 380V, 3 theem, serial encoder, 1.8KW, 15A | 3M |
| 130M4D-B26225D7 | 130 | 2.60 | 10.00 | 2500 | 380 | 5.9 | K1BS25 AB | 380V, 3 theem serial encoder, 3.0KW, 25A | 3M |
| 130M4D-B23215D7 | 130 | 2.30 | 15.00 | 1500 | 380 | 5.0 | K1BS25 AB | 380V, 3 theem serial encoder, 3.0KW, 25A | 3M |
| 150M4D-B30220D7 | 150 | 3.00 | 15.00 | 2000 | 380 | 6.8 | K1BS25 AB | 380V, 3 theem serial encoder, 3.0KW, 25A | 3M |
| 180M4D-B27215D7 | 180 | 2.70 | 17.20 | 1500 | 380 | 6.5 | K1BS25 AB | 380V, 3 theem serial encoder, 3.0KW, 25A | 3M |
| 180M4D-B30215D7 | 180 | 3.00 | 19.00 | 1500 | 380 | 7.5 | K1BS25 AB | 380V, 3 theem serial encoder, 3.0KW, 25A | 3M |
| 180M4D-B29210D7 | 180 | 2.90 | 27.00 | 1000 | 380 | 7.5 | K1BS25 AB | 380V, 3 theem serial encoder, 3.0KW, 25A | 3M |
Cim npe nrov: m= 10000 kab nce encoder 110m4d-b15** servo system, Suav teb, manufacturers, lwm tus neeg, customized, nqe
